MSSC - Marsh TDE-2100
Solenoid/Heater Area

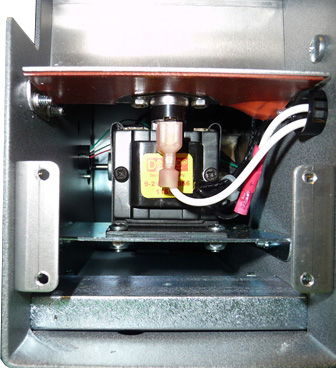

Solenoid
Main Parts List - Top Cover Area - Loose Parts Area - Bottle Side Area
Key Drum Area - Tape Basket Area - Solenoid Area
| Part Number | Description | Notes |
| RP40110 | FOOT CHANNEL | |
| RP42152 | SOLENOID ASSY TD2100 110V | This assembly includes 110V solenoid, solenoid mounting shelf, solenoid bushing, 3 wire large connector, 1 zinc washer, 1 elastic lock nut, 2- 18 GA Grey Wire, 2- F 18-22 AWG Conn, 2 Poron Pads, 4 Nylon Lock nuts, 4 rubber washers, 4 Phil Head Screws |
| RP42952 | Solenoid Spring Kit | Replaces the single spring and adds a reinforement bracket with 2 springs. |
| RP42978 | HEATER/THERMOSTAT ASSY TD2100-110V | This assembly includes thermostat, heater, water tank holder, 3 wire large connector, button splice ins connector, 2 - white 18 ga wires, 2 F 18-22 AWG Conn, 2 flat head phil screw, 2 hex nuts |
