RP1909 Bottle Bracket Power Supply Cord RPJ500-0043-001 RP1702L Latch, Brush Tank RP12293 Heater Assembly Cartridge 115v RP5015X Tape Roller Assembly RP12378 Spring, Cutter RP14334 Sensor, w/Connector RP1912 Bushing, Water Level Reg. RP11902 Clutch, Feed Shaft RP11901 Clutch, Main RP12494 Gear, Idler RP1392 Off/On Switch 115v RP33132 Chassis Assembly, Left - Black RP33124 Chassis Assembly, Right - Black RP12365 Link Sub-Assembly, Cutter RP12365 Link Sub-Assembly, Cutter

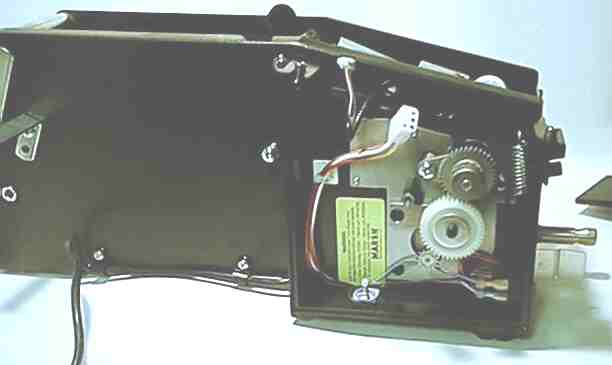

By holding your mouse over the parts some numbers will appear.

Click on the links below for specific areas:

Covers/KeyPad/Moistening        Motor Area     Front View Area

Part #            Description

RP1909          Bottle Bracket
RP33132IP     Chassis Assembly, Left - Blue
RP33132        Chassis Assembly, Left - Black
RP1912          Bushing, Water Level Reg.
RP11902        Clutch, Feed Shaft
RP11915        Yoke and Pin Assembly
RP11901        Clutch, Main
RP12337        Clutch Assembly Cutter
RP12424        Shaft Assembly, Pivot
RP12378        Spring, Cutter
RP12494        Gear, Idler
RP12365        Link Sub-Assembly, Cutter
RP13013        Bushing Assembly. ECC Cutter
RP16716        Motor Assembly - 115v
RP16717        Motor Assembly - 230v
RP3101A        Bearing, Flanged Nylon
RP14881        Bearing, Flanged Nylon 1/4 x 3/8
RP33124IP     Chassis Assembly, Right - Blue
RP33124        Chassis Assembly, Right - Black
RP13008        Shaft Assembly, Shift
RP14334        Sensor, With Connector
RPJ500-0043-001    Cord, Power Supply
RP1392         Switch, On/Off - 115v
RPE/1393      Switch, On/Off - 230v
RP1702L        Latch, Brush Tank
RP12293        Heater Assembly Cartridge - 115v
RP12334        Heater Assembly Cartridge - 230v
RP5015X        Tape Roller Assembly
RP5016          Shaft, Tape Roller Assembly
