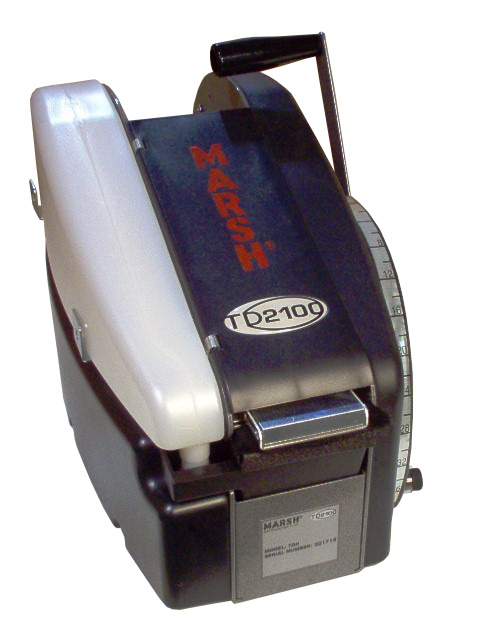

MSSC Marsh TD2100 TDH
Picture Parts List
Main Page - Under the Cover - Loose Parts - Right Side Area - Handle Area
| Replacement Part Number | Description | Item Description |
| RP40310 | Top Cover Assembly | Top Cover |
| Logo | ||
| Nut | ||
| Hinge | ||
| Screw | ||
| RP40311 | Top Cover Hinge with Screw | Hinge |
| Nut | ||
| Screw | ||
| RP40401 | Water Bottle with Valve | Bottle |
| Duckbill Valve | ||
| RP40405 | Brush Tank | Tank |
| RP40407 | Moistening Brush | Brush |
| RP42301 | Right Side Cover Assembly | Side Cover |
| Screw | ||
| Screw | ||
| Screw | ||
| Screw | ||
| Switch | ||
| Hole Plug | ||
| Screw | ||
| Nut | ||
| Stop | ||
| RP150536 | Power Switch | Switch |
| RP41257 | Handle | Handle Arm |
| Handle | ||
| Handle Insert | ||
| Washer | ||
| Screw | ||
| Nut | ||
| RP42401 | Controller Board Assembly 110V | Board 110V |
| Screw | ||
| Standoff | ||
| Washer | ||
| Nut | ||
| RP42402 | Controller Board Assembly 220V | Board 220V |
| Screw | ||
| Standoff | ||
| Washer | ||
| Nut | ||
| RP43102 | Handle Hole Plug | Hole Plug |
| RP41260 | Inch Measuring Strip | Strip |
| RP41262 | Metric Measuring Strip | Strip |
| RP41290 | Stop Bolt | Nut |
| Screw | ||
| RP40320 | Tape Basket/Motor Cover | Aluminum Plate |
| Screw | ||
| RP41258 | Cutter Actuating Arm Assembly | Arm |
| Spring | ||
| E-Clip | ||
| Shaft | ||
| Screw | ||
| Nut | ||
| RP40701 | Cutter Replacement Kit | Cutter Blade Holder |
| Cutter Blade-Movable | ||
| Fixed Blade | ||
| Fixed Blade Shoe | ||
| Spring | ||
| Set Screw | ||
| Screw | ||
| Screw | ||
| Bushing | ||
| Cutter Guide | ||
| RP40710 | Cutter Blade-Movable | Cutter Blade-Movable |
| Screw | ||
| Set Screw | ||
| RP40715 | Cutter Blade-Fixed | Fixed Blade |
| Spring | ||
| Fixed Blade Shoe | ||
| Shoe Lock | ||
| RP42978 | Heater/Thermostat Assembly 110V | Water Tank Holder |
| Thermostat 110V | ||
| Screw | ||
| Nut | ||
| Heater 110V | ||
| Screw | ||
| Wire | ||
| Wire Connections | ||
| RP42977 | Thermostat Assembly 110V | Thermostat 110V |
| Screw | ||
| Nut | ||
| Wire | ||
| Wire Connections | ||
| RP40231 | 3/8 Bearing | Bearing |
| RP41221 | 1/2 Bearing | Bearing |
| RP42810 | Heater/Thermostat Assembly 220V | Water Tank Holder |
| Thermostat 220V | ||
| Screw | ||
| Nut | ||
| Heater 220V | ||
| Screw | ||
| Wire | ||
| Wire Connections | ||
| RP40236 | Cutter Guard Clip | Clip |
| Screw | ||
| RP41290 | Stop Bolt and Nut | Nut |
| Screw | ||
| RP40352 | Water Tank Holder | Water Tank Holder |
| Screw | ||
| RP40315 | Front Cover and Ramp | Cover |
| Screw | ||
| RP40505 | Pressure Plate | Sticker |
| Plate | ||
| RP40570 | Complete Slide Roller Assembly | Tube |
| Bearing | ||
| Shaft | ||
| Screw | ||
| Bracket | ||
| Screw | ||
| RP40522 | Top and Free Roller Assembly | Roller Tube |
| Bearing | ||
| Shaft | ||
| E-Clip | ||
| RP40305 | Left Side Cover | Side Cover |
| Screw | ||
| RP40404 | Rear Water Bottle Bracket with Screw | Bracket |
| Screw | ||
| RP40403 | Front Water Bottle Bracket with Screw | Bracket |
| Screw | ||
| RP40325 | Cutter Guard with Screws | Guard |
| Sticker | ||
| Screw | ||
| RP40540 | Pinch Roll Assembly | Pin |
| Spring | ||
| E-Clip | ||
| Shaft | ||
| Holder | ||
| Roll | ||
| E-Clip | ||
| RP41905 | Cutter Return Spring Assembly | Spring |
| Anti-Boing | ||
| Screw | ||
| Nut | ||
| S-Hook | ||
| RP40580 | Coder Roller | Roller |
| RP41904 | Cutter Slide Bolt | Screw |
