Marsh Machines

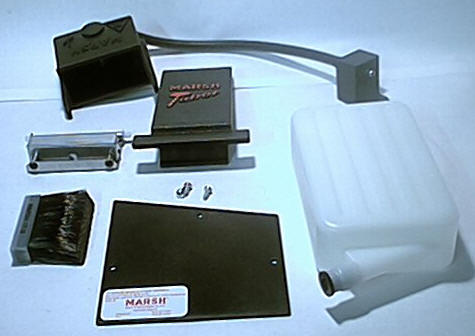

RP1903P Water Bottle RP33482 Left Side Cover Plate RP1712 Moistening Brush RP33122 Water Regulator RP16913 Pressure Pad Assembly RP33129 Cover Weight RP33120 Tank RP1906B Hose

Click on the areas below for additional pictures:

Housing/Gear Cover          Cutting Shear Area

Underside/Gears           Inside Top Cover Parts        Tape Basket Area

Marsh HT Brochure

Part #        Description

RP33483    Cover, Left Side Plate - Blue
RP33482    Cover, Left Side Plate - Black
RP33471    Cover, Weight - Blue
RP33129    Cover, Weight - Black
RP1903P    Bottle, Water
RP33120    Tank Brush Assembly - Black
RP33149    Tank Brush Assembly - Blue
RP33500    Tank Brush Assembly - 220v
RP1712      Moistening Brush
RP16913    Pad Assembly, Pressure
RP1906B    Water Hose
RP33459    Water Regulator - Blue
RP33122    Water Regulator - Black
RP33460    Duck Bill (Pkg. of 5)  (Inserts in Water Bottle)
